Spesifikasi Teknis :

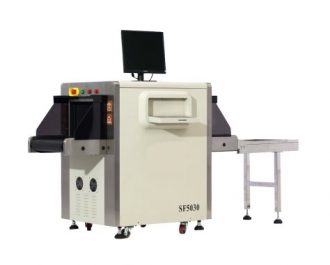

Model: SF5030A
Tunnel Size : 500 (W) ×300 (H) mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 100 kg
Single inspection dosage: < 1.32μGy
Wire Resolution: 40AWG
Steel Penetration: 10mm
Film Safety: For ISO 1600

X-RAY GENERATOR

Orientation: Upward
Tube Current:0.4~0.7mA（adjustable）
Anode Voltage:80KV（adjustable）
Angle: 60°
Generator cooling/working periods: Sealed oil bath with forced air/100％

OPERATING ENVIRONMENT

Storage Temperature: -20oC to 60oC
Operating Temperature: 0’C to 45’C
Relative Humidity:  20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise<65DB

X-RAY Sensor: L-shaped array detector 24bit Single energy

Image Performance System:

Display: High-resolution 19 inch color LCD display
Color quality: 24-Bit real colors based on materials
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
Magnifier: Partial magnifying function
Brightening/dimming: Increase/Decrease brightness of image
Image recurrence: Display the previous twenty images and process any one of them
Image restoration: Restore image to initial status
Image storage: Real-time store any image and process it in operation status

Special features:

Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
