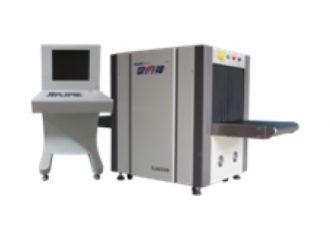

Description:
Parameter:
*Tunnel Size: 650mm(w)*500mm(H)
*Load Weight : 150Kgs
*Conveyor Speed: 0.2-0.23m/s
*Radiation Leakage: 0.57 uG/h
*Penetration: 40mm steel
*X-ray resolution: 40AWG
X-ray Generator:
*X-ray beam direction: from bottom
*Beam Divergence: 80’
*Tube Voltage: 80-160Kv
*Eletronic Current: 0.2-1.25m/A
*Cooling: Selaed oil cooling + 100% Duty cycle
Image Function:
*X-Ray converter arrangement: Dual energy L-shaped photodiode array detector
*Inoragnic/Organic Striping: : Organic substances display in orange, in organic substances display in blue, mixtures display in green
*Maximum image resolution: 1024*768
*Image Storage: 100.000 Pcs
*Image Display Color: Black/White & Color
*Grey Level: 65536
*Zone & zoom: 1-9 image zones, 2,4,8 time zooming
*Other Function: Alarm, Review, Density Enhancement, negative/positive image , Light/DarkEnhancement, automatic count, one key power off, working status display, date and time display, rush stop protection, dangerous alarm, system failure alarm etc.
