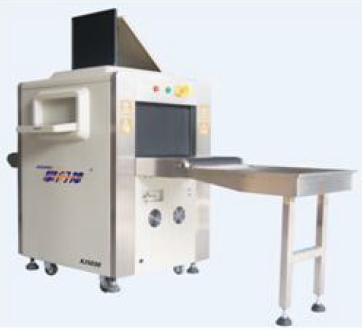

Description:
General Specifications
Tunnel Size : 500 (W) ><300 (H) mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 150 kg
Single inspection dosage : < 1.32mGy
Wire Resolution: 0.0787mm metal line
Steel Penetration: 12MM
Film Safety: For ISO 1600
X-RAY GENERATOR
Orientation: Upward
Tube Current: 0.4~0.7MA ( adjustable)
Anode Voltage: 80KV ( adjustable)
Angle: 60derajat
Generator cooling/working periods
Sealed oil bath with forced air/100%
OPERATING ENVIRONMENT
Storage Temperature: -20C to 60C
Operating Temperature: 0C to 45C
Relative Humidity:
20 to 95% non-condensing
System Power: 220 VAC (+-10%) 50+-3HZ
Power wastage : 1.0 KW (Max)
Noise<65DB
X-RAY Sensor:
L-shaped array detector
24bit
Single energy
